●Lifting belt assembly carries out JB/T8521.2-2007、EN1492-2：2000+A1：2008.
●The lifting belt assembly is made of rings, sling, hook, shackle, end pieces of metal and so on.
●The lifting belt assembly can be assembled freely according to the customer's requirements.
●Each lifting belt assembly is equipped with an aluminum nameplate, so as to ensure the traceability of the quality of the product.
●Attention should be paid to the relationship between included angle and tonnage in the process of using.
●The lifting belt assembly has the characteristics of light weight, softness and no damage to the surface of the hanging object.

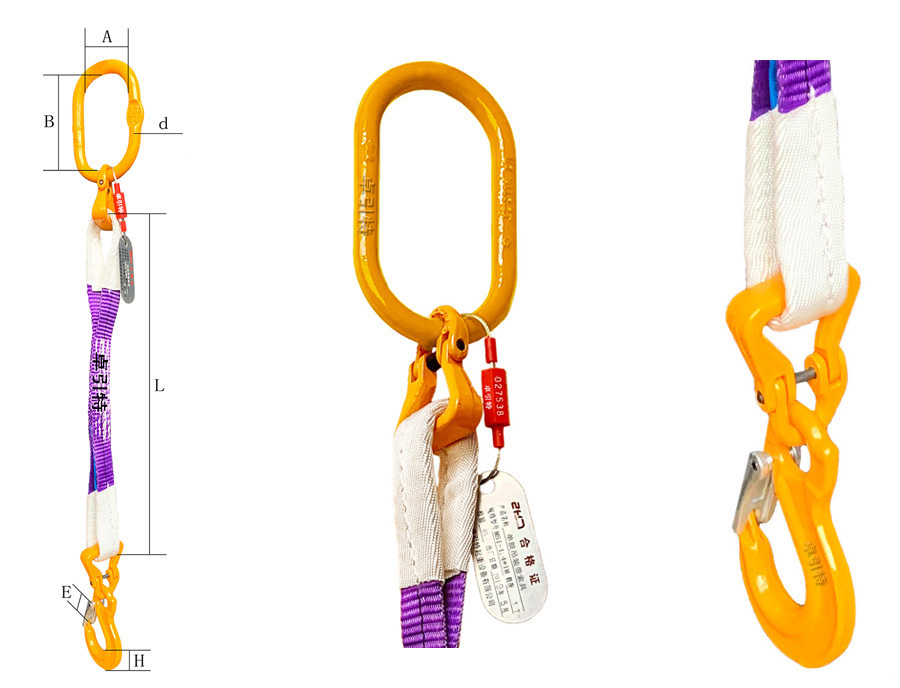

Standard type

Model	WLL（t）	Length range	size（mm）					Master Link ( t )	Hook( t )
		L（m）	A	B	d	E	H
MS1A-01	1	1~10	60	110	13	24	21	1.6	1.12
MS1A-02	2	1~10	60	110	16	30	27.5	2.12	2
MS1A-03	3	1~10	75	135	18	34	33	3.15	3.15
MS1A-04	4	1.5~10	90	160	22	39	43.5	5.3	5.3
MS1A-05	5	2.0~10	90	160	22	39	43.5	5.3	5.3
MS1A-06	6	2.0~10	100	180	26	46	50	8	8
MS1A-08	8	2.0~10	100	180	26	46	50	8	8
MS1A-10	10	2.0~10	110	200	32	48	56	11.2	12.5
MS1A-12	12	3.0~10	140	260	36	48	56	14	12.5
MS1A-15	15	3.0~10	160	300	40	71	62	17	15
MS1A-20	20	3.0~10	180	340	45	81	75	21.2	21.2
MS1A-25	25	3.0~10	190	350	50	102	89	31.5	31.5
MS1A-30	30	3.5~10	200	400	56	102	89	45	31.5

*The length of the lifting belt according to the customer's requirements

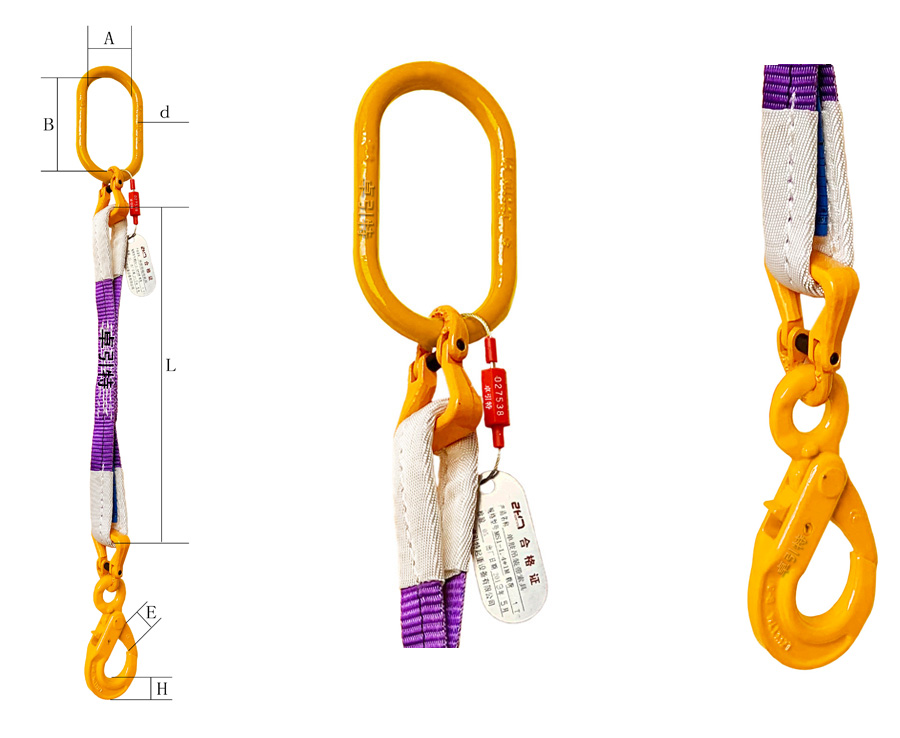

Self-locking hook type

Model	WLL（t）	Length range	size（mm）					Master Link ( t )	Hook( t )
		L（m）	A	B	d	E	H
MS1B-01	1	1~10	60	110	13	28	19.5	1.6	1.12
MS1B-02	2	1~10	60	110	16	35	24	2.12	2
MS1B-03	3	1~10	75	135	18	45	30	3.15	3.15
MS1B-04	4	1.5~10	90	160	22	52.5	40	5.3	5.3
MS1B-05	5	2.0~10	90	160	22	52.5	40	5.3	5.3
MS1B-06	6	2.0~10	100	180	26	63	50.5	8	8
MS1B-08	8	2.0~10	100	180	26	63	50.5	8	8
MS1B-10	10	2.0~10	110	200	32	85	55	11.2	12.5
MS1B-12	12	3.0~10	140	260	36	85	55	14	12.5
MS1B-15	15	3.0~10	160	300	40	86	67	17	15
MS1B-20	20	3.0~10	180	340	45	96	75	21.2	21.2
MS1B-25	25	3.0~10	190	350	50	133	97	31.5	31.5
MS1B-30	30	3.5~10	200	400	56	133	97	45	31.5

*The length of the lifting belt according to the customer's requirements

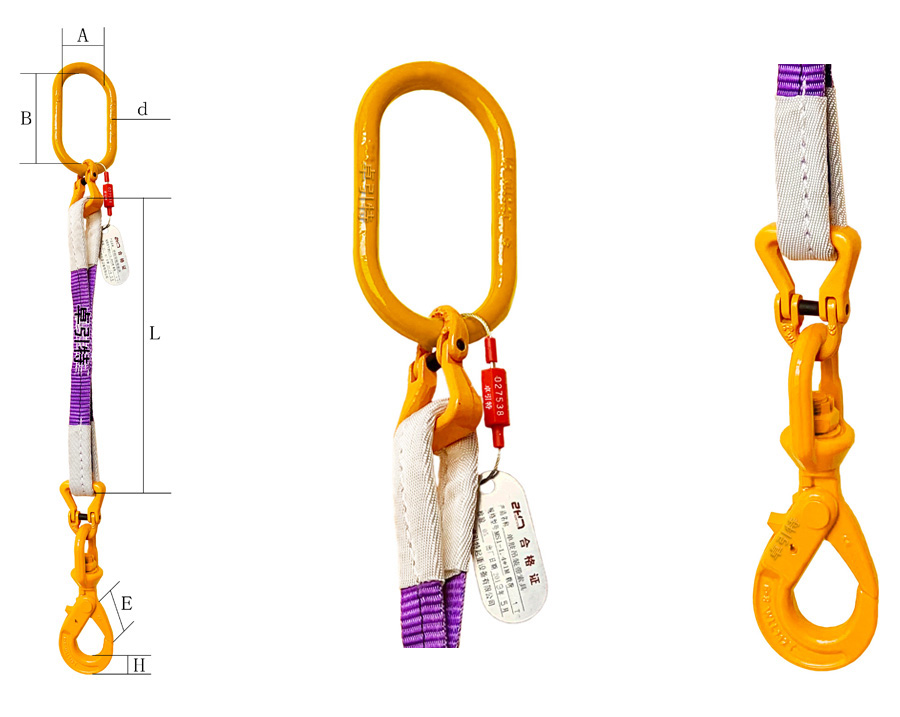

Swivel Selflock Hook Type

Model	WLL（t）	Length range	size（mm）					Master Link ( t )	Hook( t )
		L（m）	A	B	d	E	H
MS1C-01	1	1~10	60	110	13	29	20	1.6	1.12
MS1C-02	2	1~10	60	110	16	34	26	2.12	2
MS1C-03	3	1~10	75	135	18	44	30	3.15	3.15
MS1C-04	4	1.5~10	90	160	22	52	40.5	5.3	5.3
MS1C-05	5	2.0~10	90	160	22	52	40.5	5.3	5.3
MS1C-06	6	2.0~10	100	180	26	60	50.5	8	8
MS1C-08	8	2.0~10	100	180	26	60	50.5	8	8
MS1C-10	10	2.0~10	110	200	32	83	62	11.2	12.5
MS1C-12	12	3.0~10	140	260	36	83	62	14	12.5
MS1C-15	15	3.0~10	160	300	40	88	66	17	15
MS1C-20	20	3.0~10	180	340	45	95.5	74	21.2	21.2
MS1C-25	25	3.0~10	190	350	50	105	96	31.5	31.5
MS1C-30	30	3.5~10	200	400	56	105	96	45	31.5

*The length of the lifting belt according to the customer's requirements

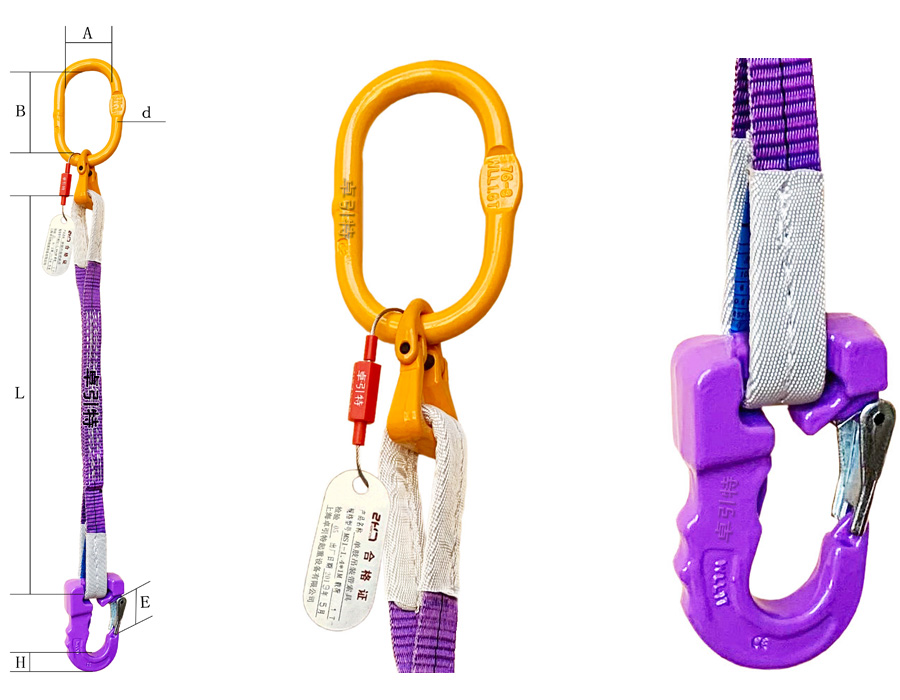

Webbing Sling Connnector Type

Model	WLL （t）	Length range	size（mm）					Master Link ( t )	Hook( t )
		L（m）	A	B	d	E	H
MS1D-01	1	1~10	60	110	13	33	21	1.6	1
MS1D-02	2	1~10	60	110	16	40	27	2.12	2
MS1D-03	3	1~10	75	135	18	41	33	3.15	3
MS1D-04	4	1.5~10	90	160	22	50.5	40.5	5.3	4
MS1D-05	5	2.0~10	90	160	22	50.5	40.5	5.3	5

*The length of the lifting belt according to the customer's requirements
