Product number: ZYT021583
Back to page
Angle Bead For the belt
●Effective protection lifting belt.
●PE material.
●Suitable temperature: -100~-70°C
●Excellent insulation.
Right Angle Type
Planar Type
●PE material.
●Suitable temperature: -100~-70°C
●Excellent insulation.

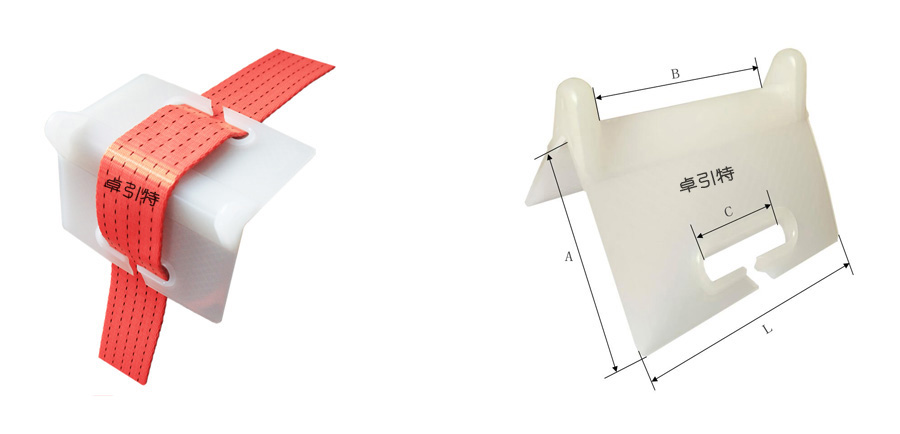

Right Angle Type
| Model | Width Range | WLL | Size（mm） | |||
| mm | kg | A | B | C | L | |
| PS03-50 | 35~50 | 5000 | 91 | 112 | 58 | 137 |
| PS03-100 | 75~100 | 10000 | 91 | 106 | 116 | 131 |

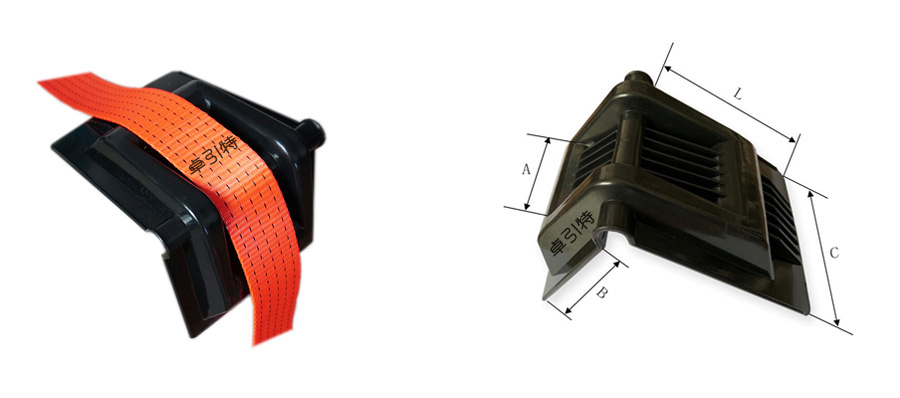

| Model | Width Range | WLL | Size（mm） | |||
| mm | kg | A | B | C | L | |
| PS04-50 | 35~50 | 5000 | 58 | 120 | 148 | 165 |

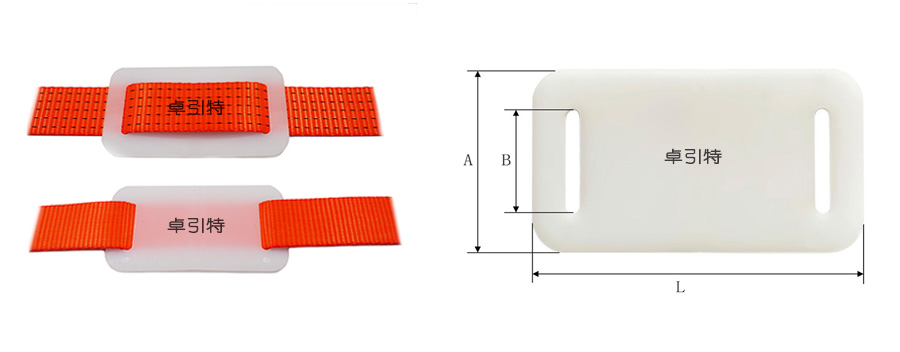

Planar Type
| Model | Width Range | WLL | Size（mm） | ||
| mm | kg | A | B | L | |
| PS05-50 | 35~50 | 5000 | 90 | 51 | 160 |
