Product number: ZYT021587
Back to page

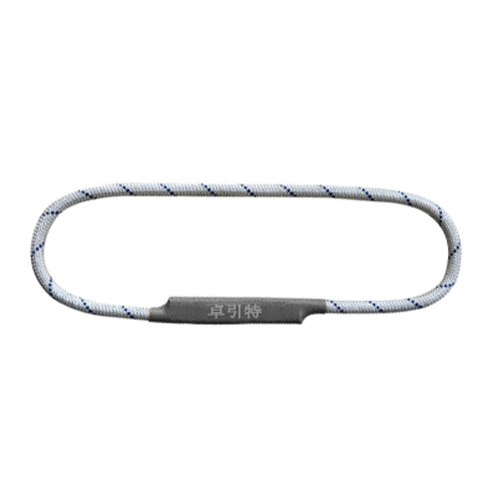

Electric Traction Rope （Endless Type）
●Mainly used for installation and traction of cable erection.
●Length can be customized according to customer requirements.
●Electric traction rope with PES and HMPE materials.
●Add the Heat-shrink tube according to the requirements.
●Length can be customized according to customer requirements.
●Electric traction rope with PES and HMPE materials.
●Add the Heat-shrink tube according to the requirements.
| Model | Breaking Load | Approximate diameter（mm） | Length Range | Weight（kg/m） | |||
| PES Material | HMPE Material | kg | PES material | HMPE Material | m | PES Material | HMPE Material |
| DLP03-1.2 | DLD03-1.2 | 1200 | 6 | - | 1.5~500 | 0.05 | - |
| DLP03-1.5 | DLD03-1.5 | 1500 | 7 | - | 1.5~500 | 0.06 | - |
| DLP03-2 | DLD03-2 | 2000 | 8 | 6 | 1.5~500 | 0.07 | 0.032 |
| DLP03-3 | DLD03-3 | 3000 | 10 | 7 | 2 ~500 | 0.08 | 0.038 |
| DLP03-4 | DLD03-4 | 4000 | 11 | 8 | 2~500 | 0.1 | 0.054 |
| DLP03-5 | DLD03-5 | 5000 | 12 | 9 | 2~500 | 0.12 | 0.07 |
| DLP03-6 | DLD03-6 | 6000 | 13 | 10 | 2~500 | 0.15 | 0.082 |
| DLP03-8 | DLD03-8 | 8000 | 14 | 11 | 2.5~500 | 0.22 | 0.121 |
| DLP03-10 | DLD03-10 | 10000 | 15 | 12 | 2.5~500 | 0.3 | 0.128 |
| DLP03-12 | DLD03-12 | 12000 | 16 | 13 | 2.5~500 | 0.32 | 0.132 |
| DLP03-15 | DLD03-15 | 15000 | 17 | 14 | 2.5~500 | 0.4 | 0.17 |
| DLP03-20 | DLD03-20 | 20000 | 19 | 15 | 2.5~500 | 0.48 | 0.192 |
| DLP03-24 | DLD03-24 | 24000 | 21 | 16 | 2.5~500 | 0.54 | 0.256 |
| DLP03-30 | DLD03-30 | 30000 | 23 | 17 | 2.5~500 | 0.78 | 0.354 |
