Product number: ZYT021351
Back to page

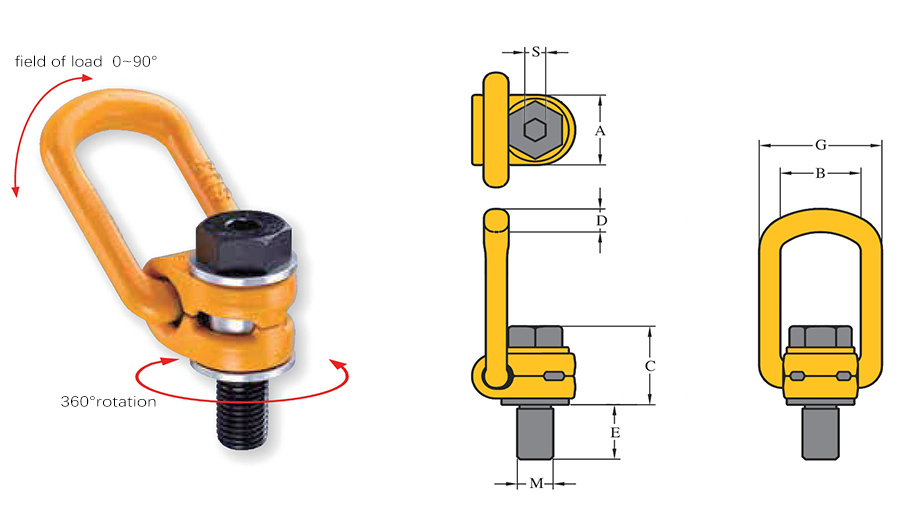

Side pull lifting point
●Meet or exceed the requirements of the ASME B30.26 (ASME) specification.
●Manufactured from alloy steel, quenched and tempered.
●All forgings and bolts are printed with batch numbers, so as to ensure traceability of the quality of the products.
●Rotates through 360° and pivot 90°.
●Bolts are Metric thread (ASME / ANSI B18.3.1M), specification is grade 12.9 alloy socket head screw per DIN EN ISO 4762.
●Proof tested to 2.5 times the WLL.
●Fatiuge tested at 1.5 times working load limit for 20000 cycles.
●100% magnaflux crack detection.
●Manufactured from alloy steel, quenched and tempered.
●All forgings and bolts are printed with batch numbers, so as to ensure traceability of the quality of the products.
●Rotates through 360° and pivot 90°.
●Bolts are Metric thread (ASME / ANSI B18.3.1M), specification is grade 12.9 alloy socket head screw per DIN EN ISO 4762.
●Proof tested to 2.5 times the WLL.
●Fatiuge tested at 1.5 times working load limit for 20000 cycles.
●100% magnaflux crack detection.
●Provide customized UNC thread.
●Provide customized lengthening screw.
|
ITEM NO.
|
WLL
|
Torque
|
Size(mm)
|
Weight
|
||||||
|
T
|
N m
|
A
|
B
|
C
|
D
|
E
|
G
|
S
|
Kg
|
|
|
CD-M 8x1.25
|
0.3
|
30
|
30
|
35
|
35
|
14
|
11
|
45
|
6
|
0.36
|
|
CD-M10x1.5
|
0.63
|
60
|
30
|
35
|
36
|
14
|
16
|
45
|
6
|
0.38
|
|
CD-M12x1.75
|
1
|
100
|
36
|
40
|
44
|
18
|
18
|
68
|
8
|
0.71
|
| *CD-M14x2.0 | 1.2 | 120 | 36 | 40 | 45 | 18 | 21 | 68 | 8 | 0.72 |
|
CD-M16x2.0
|
1.5
|
150
|
36
|
40
|
46
|
18
|
24
|
68
|
8
|
0.74
|
|
CD-M20x2.5
|
2.5
|
250
|
50
|
54
|
58
|
18
|
30
|
83
|
12
|
1.19
|
|
CD-M24x3.0
|
4
|
400
|
50
|
54
|
60
|
18
|
35
|
83
|
14
|
1.35
|
|
CD-M30x3.5
|
5
|
500
|
68
|
73
|
84
|
27
|
48
|
120
|
17
|
4.4
|
|
CD-M36x4.0-7T
|
7
|
700
|
68
|
73
|
88
|
27
|
54
|
120
|
17
|
4.65
|
|
CD-M36x4.0-8T
|
8
|
800
|
86
|
94
|
101
|
31
|
62
|
156
|
22
|
7.6
|
|
CD-M42x4.5-10T
|
10
|
1000
|
86
|
94
|
104
|
31
|
72
|
156
|
24
|
8.2
|
|
CD-M42x4.5-15T
|
15
|
1500
|
95
|
104
|
116
|
40
|
63
|
176
|
24
|
12.4
|
|
CD-M48x5.0
|
20
|
2000
|
95
|
104
|
120
|
40
|
74
|
176
|
27
|
13
|
